optical power meter

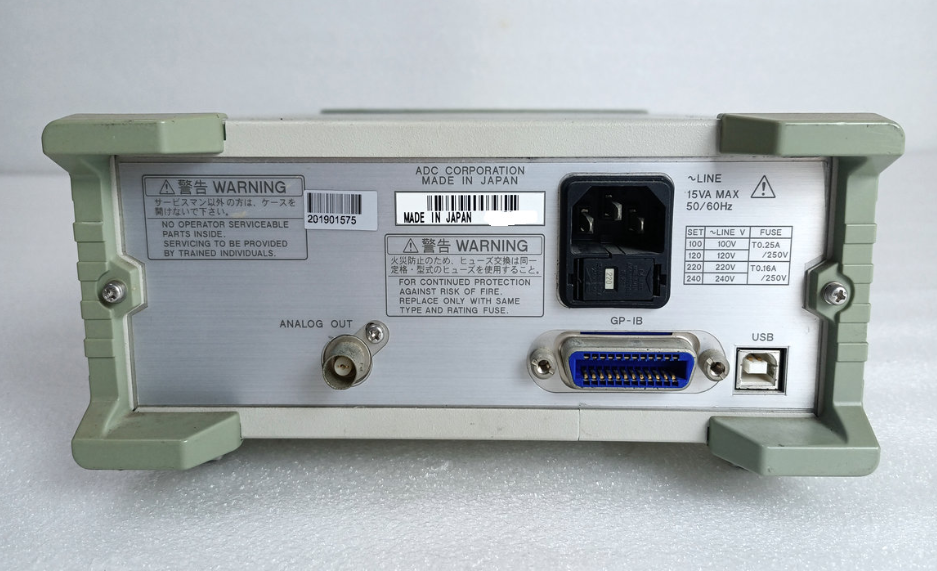

Key Features High-precision bench-type optical power meter – ideal for R&D and production of laser diodes (LDs), optical pickups, and optical disk drives 5½-digit fluorescent display with 0.001dB high resolution Wide measurement range: –35 dBm to +20 dBm Multi-range support – 8 ranges with auto/manual/remote switching Nine types of optical sensors available for various purposes (general-purpose / blue-violet / high-power / three-wavelength) and shapes (thin-type / cylindrical-type) Three-wavelength sensors (82314B, 82324B, 82314BW) support 405nm, 650nm, and 780nm measurements Blue-violet sensors (82312B, 82322B) provide flat wavelength sensitivity and low incidence-angle dependency at 405nm High-power sensors (82313B, 82323B) enable measurements up to 200mW Measurement rates: FAST 10 readings/sec, MED 5 readings/sec, SLOW 2 readings/sec Wavelength correction: 1nm step sensitivity compensation Standard interfaces: USB 2.0, GPIB, and BNC analog voltage output for easy automated system integration Memory: 4 sets of instrument configuration storage with power-off memory Operating environment: 0°C to 40°C, humidity ≤80% non-condensing
