Data Network Analyzer

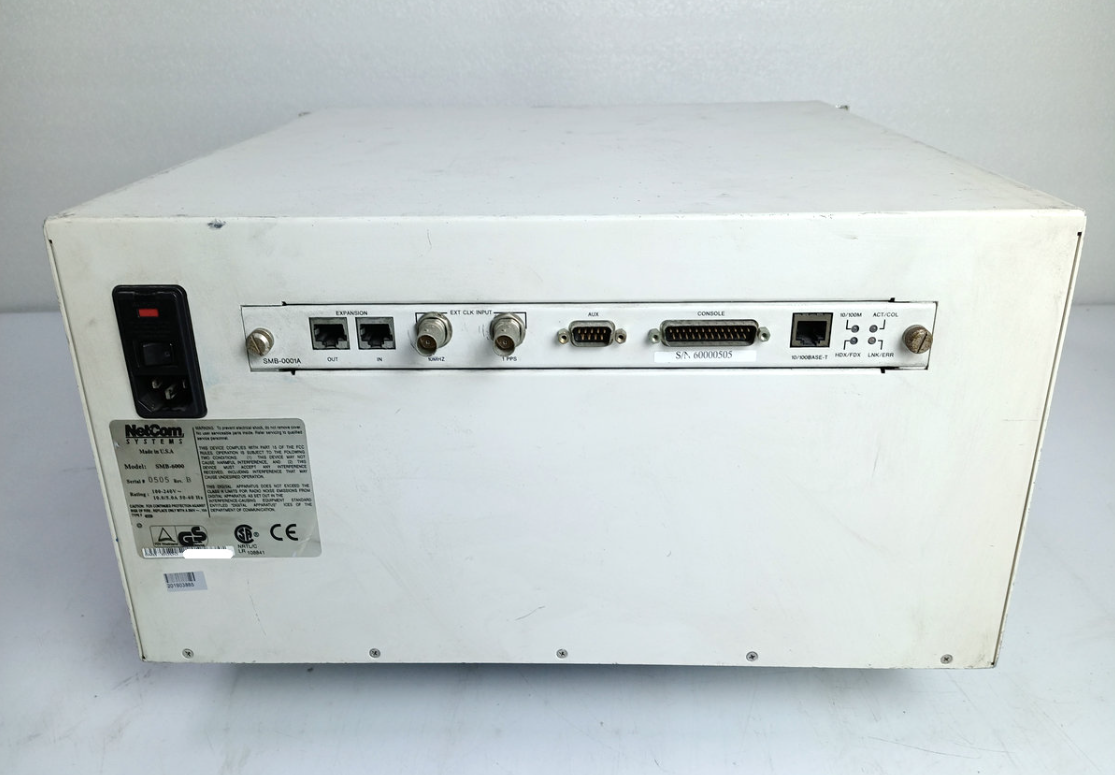

Hardware & Port Density Chassis & Capacity: A compact, 2-slot chassis designed for portability. It can house up to two modules. Maximum Port Configuration: Supports a mix of port types, with maximums including: 16 x 10/100 Mbps Ethernet ports 4 x Gigabit Ethernet ports 1 x 10 Gigabit Ethernet port 4 x Fibre Channel ports 2 x Packet over SONET (POS) ports Scalability: Multiple SMB-600 units can be daisy-chained together to achieve higher port density for large-scale testing. Software & Functionality Control & Interface: Easily controlled by a host PC via a 10/100 Mbps Ethernet connection, using a Windows-based interface. Included Software: Comes bundled with three PC-based software applications for comprehensive performance analysis: SmartWindow™: For basic control and test setup. SmartLibrary™ (SmartLib): A programming library for automation. SmartApplications™: For advanced and automated testing. Standards Support: Supports sophisticated automated industry-standard performance tests as defined in RFC 1242 and RFC 2544. Key Features: Includes high-resolution internal clock, external clock support, and clock synchronization for multiple connected units.
