data collector

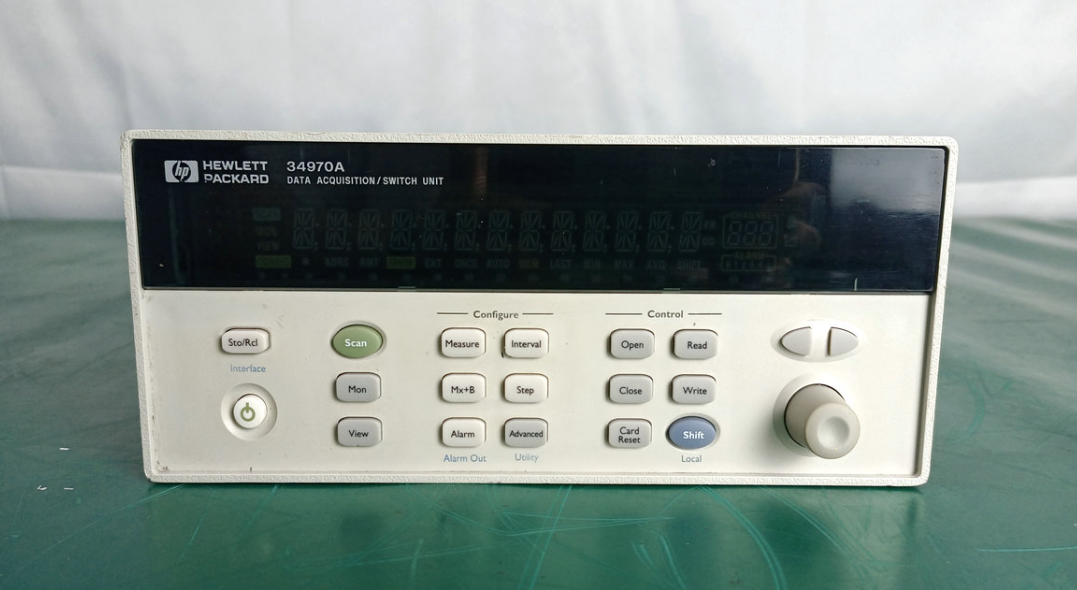

Core Features Mainframe & Form Factor: A compact, half-rack mainframe with three module slots at the rear for installing various switch and control modules. Built-in Multimeter: Features an internal 6 1/2-digit (22-bit) digital multimeter (DMM) for high-precision measurements. Interfaces: Comes with built-in GPIB and RS-232 interfaces for computer control and data transfer. Software: Includes free BenchLink Data Logger software for configuring tests, displaying, and analyzing data on a PC without programming. Key Specifications Scanning Speed: Capable of scanning up to 250 channels per second. Measurement Functions: Each channel can be independently configured to measure 11 different functions, including: Thermocouples, RTDs, and thermistors AC/DC voltage and current Resistance Frequency and period Data Storage: Has 50,000 readings of non-volatile memory to retain data when power is removed. Alarms: Supports high/low alarm limits on each channel, plus 4 TTL alarm outputs. Relay Maintenance: A unique feature that counts every closure on every switch for easy, predictable relay maintenance. Power: Operates on 100, 120, 220, or 240 V AC, 45 to 66 Hz, with a power consumption of 12 W
