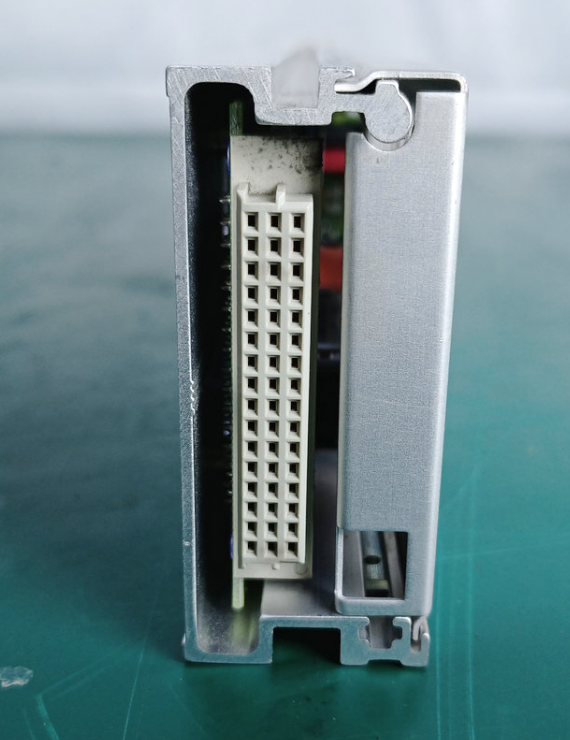

Power sensor module

Key Features 1. High-Sensitivity InGaAs Sensor Utilizes an InGaAs photodetector element for high-accuracy measurements across the near-infrared spectrum Covers the full optical communications波段 including 850 nm, 1310 nm, and 1550 nm 2. Ultra-Wide Dynamic Range Measures optical power from +3 dBm down to an extremely sensitive -110 dBm Capable of detecting very weak optical signals, making it the most sensitive module in the 815xx series 3. High Accuracy and Linearity Achieves ±2.5% measurement accuracy across 1000–1650 nm Maintains high linearity of ±0.015 dB from 0 to -90 dBm Total uncertainty of ±5% ±0.5 pW in the 1000–1650 nm band 4. Low Noise Performance Selectable averaging times from 100 µs to minutes enable noise suppression below 0.5 pW (700–900 nm) and below 50 pW (1200–1600 nm) at 1 second integration 5. Modular Design & Compatibility Plug-in module compatible with HP/Agilent 8153, 8163, and 8164 series Lightwave Multimeter mainframes Supports hot-swapping for easy integration into existing test systems Standard optical interface connectors (PC / FC interface) Supports both single-mode and multimode fiber testing 6. Programmability & Connectivity GPIB programmable with millisecond measurement transfer times Analog output via BNC for external monitoring
