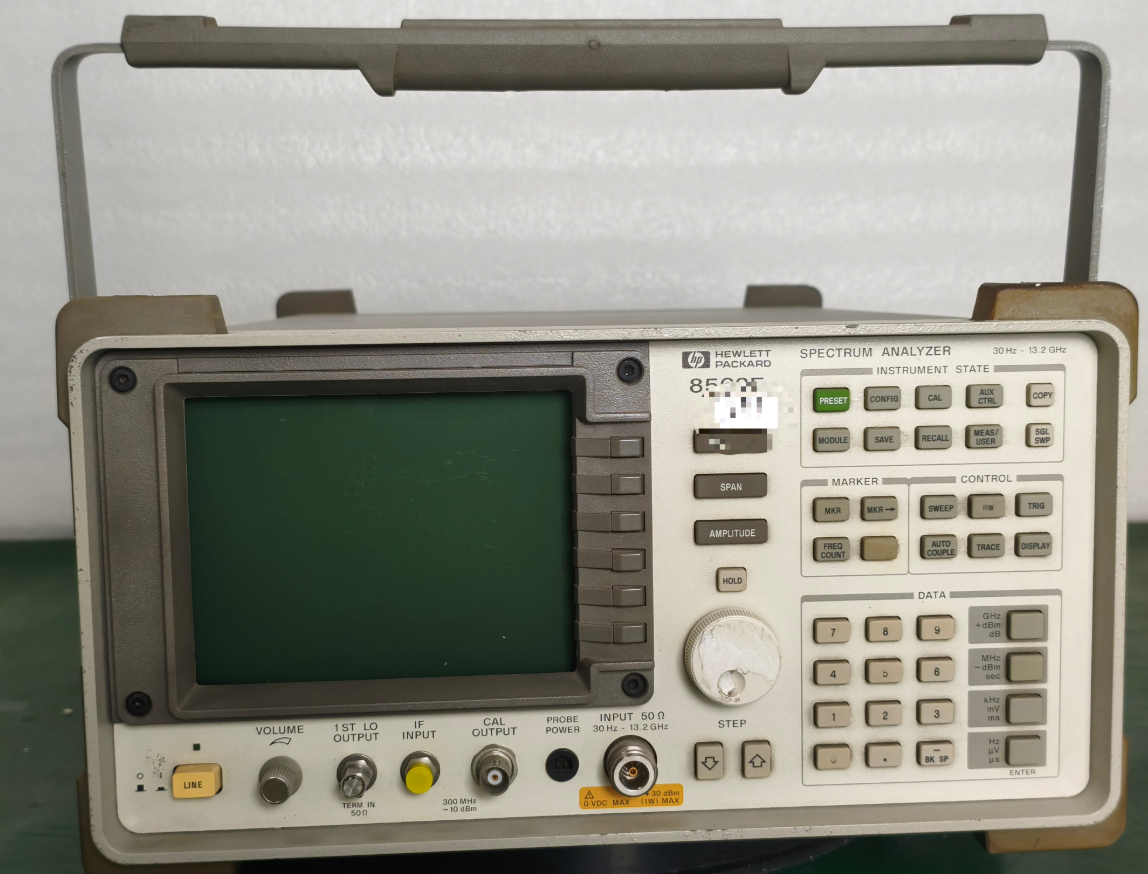

frequency analyser

Key Features Broad Frequency Coverage – Frequency range: 30 Hz to 13.2 GHz (covers GSM and other communication standards for spurious testing). – Can be extended beyond 75 GHz using external mixers. Excellent RF Performance – High sensitivity: Displayed Average Noise Level (DANL) as low as ‑151 dBm, enabling detection of very weak signals. – Low phase noise: Typical phase noise of ‑113 dBc/Hz at 10 kHz offset, allowing close‑in signal resolution. – Large dynamic range: Third‑order dynamic range of 100 dB – simultaneous measurement of strong and small spurious signals is possible. Powerful Measurement & Analysis Capabilities – High‑speed digital resolution bandwidths: Digital RBW from 1 Hz to 100 Hz – scans 3 to 600 times faster than traditional analog filters. – Built‑in measurement functions: One‑button measurements for channel power, adjacent channel power (ACP), carrier power, and gated video. – High‑precision frequency counter: Built‑in counter with 1 Hz resolution; accuracy of ±135 Hz at 1 GHz (after 15‑minute warm‑up). Rugged & Environmentally Adaptable – Complies with MIL‑T‑28800 military standards. – Operating temperature range: ‑10 °C to +55 °C. – Withstands shocks up to 30 g. Flexible Expandability & Integration – Optional tracking generator available. – Standard interfaces: GPIB, RS‑232 for easy integration into automated test systems.
